Mastering the Perfect Finish: The Secret Lies in Your Gun & Tip Selection

Every professional painter knows the feeling: You have prepped the surface perfectly, mixed your coating, and fired up the pump. But when you pull the trigger on your airless spray gun, the result is disappointing. Maybe there are "tails" (lines) at the edge of the pattern, or the finish looks patchy.

Many operators blame the paint or the pump, but more often than not, the secret to a flawless finish lies in two small but critical components: your airless spray gun and your airless spray tip.

At Cosmostar Tech, we believe in Simplicity and Solutions. Understanding how to match your airless spray gun with the right accessories is the key to working smarter, not harder.

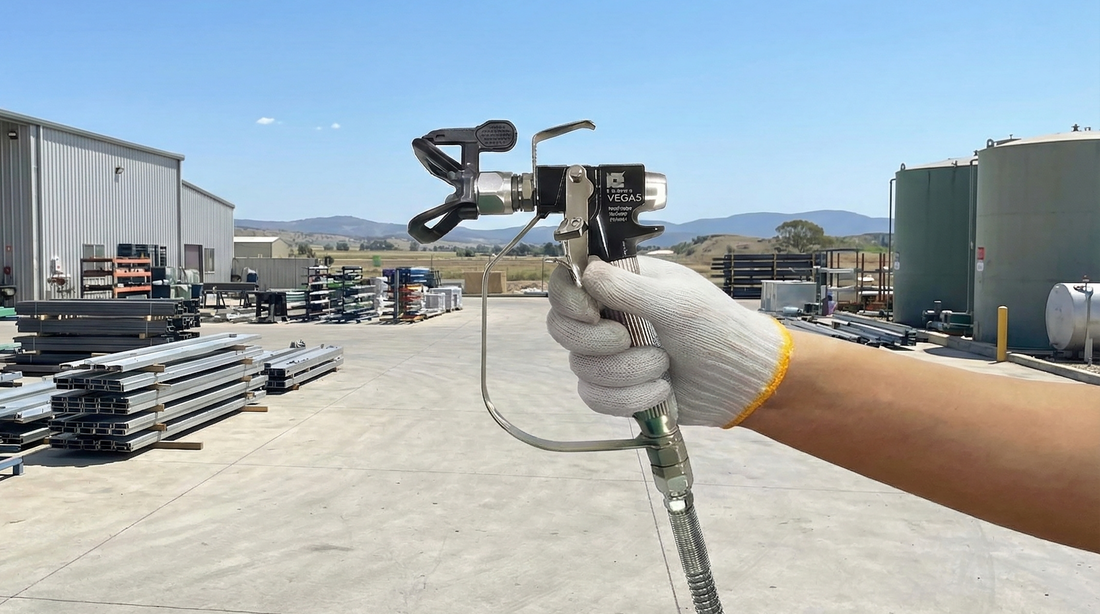

Why Your Airless Spray Gun Matters

Our airless spray gun is the final point of control in the fluid handling process. It is the extension of your arm. If you are spraying for eight hours a day, the ergonomics, trigger weight, and durability of that airless spray gun define your experience.

A high-quality airless spray gun, such as the Cosmostar R2006 Gun or our Low-Pressure Guns (X102, X202), provides the precision needed for consistent overlap. A cheap or worn-out airless spray gun can spit, leak, or fail to shut off the fluid instantly when you release the trigger, ruining an otherwise perfect pass.

However, even the best airless spray gun in the world cannot perform well if it is paired with the wrong airless spray tip.

X102

R2006



Decoding the "Secret Code" of Spray Tips

Choosing the correct airless spray tip is often confusing for beginners, but it is actually simple math. Most airless spray tips have a 3-digit number code (e.g., 517, 311, 621).

Here is how to read them to ensure your airless spray gun performs perfectly:

1. The First Digit: Fan Width

The first number represents the width of the spray fan when the airless spray gun is held 12 inches (30 cm) from the surface. You multiply this number by 2.

• Example: A 517 tip has a fan width of 10 inches (5 x 2 = 10).

• Example: A 311 tip has a fan width of 6 inches (3 x 2 = 6).

If you are spraying a large wall, you want a wider fan (larger first digit) on your airless spray gun to cover the area with Speed. If you are spraying narrow beams or window frames, you want a narrower fan to reduce waste.

2. The Last Two Digits: Orifice Size

The last two numbers represent the size of the hole (orifice) in thousandths of an inch. This determines how much fluid flows through your airless spray gun.

• Example: A 517 tip has a 0.017-inch opening.

• Example: A 521 tip has a 0.021-inch opening.

This is where Viscosity (fluid thickness) matters.

Matching the Tip to the Material

To get the best results from your airless spray gun, you must match the orifice size to the coating thickness.

• Thin Materials (Stains, Lacquers): Use a smaller orifice (e.g., .009 to .013). A large hole will flood the surface and cause runs.

• Medium Materials (Latex, Enamels): Use a medium orifice (e.g., .015 to .019). This is the standard range for most architectural painting with an airless spray gun.

• Heavy Materials (Epoxy, Fireproofing, Zinc): Use a large orifice (e.g., .021 to .035+). A small tip will clog instantly.

Using a tip that is too small for a thick fluid forces you to crank up the pressure on your pump, which adds stress to your airless spray gun and shortens the life of the equipment.

Don't Forget the Filters

A common mistake is using the correct tip but the wrong filter in the airless spray gun handle. The mesh size of the filter must align with the tip size.

• Small Tips: Require a fine mesh filter (100 mesh) to catch tiny debris before it blocks the tip.

• Large Tips: Can handle coarser filters (60 mesh) allowing better flow for thicker paints.

Checking the Mesh Strainer in your airless spray gun should be part of your daily routine.

When to Replace Your Accessories

Even the most durable airless spray tip is a consumable item. The abrasive nature of paint, especially at high pressure, wears down the orifice over time.

If your airless spray gun starts producing a pattern that is round instead of oval, or if you see "tails" that won't go away even when you increase pressure, your tip is blown out. Continuing to use a worn tip wastes paint (up to 25% more!) and forces your pump to work harder.

Conclusion

Achieving a professional finish isn't magic; it is about precision. By selecting the right airless spray gun for your comfort and the right airless spray tip for your material, you ensure efficient, high-quality results.

Don't let worn-out accessories slow you down. Cosmostar Tech provides the Solution you need with a full range of high-quality guns, tips, and filters.

Need help choosing the right setup? Check out our latest tips on [Instagram] or contact us for a consultation.

Cosmostar Tech Simplicity. Solution. Speed. www.cosmostar.net
