Tails and spitting start here
Dried skin, rust flakes and site grit reach the tip through the manifold. A clean screen catches them first, so the fan stays even from the first pass instead of costing you a sand-and-respray.
1
/
of
4
COSMOSTAR

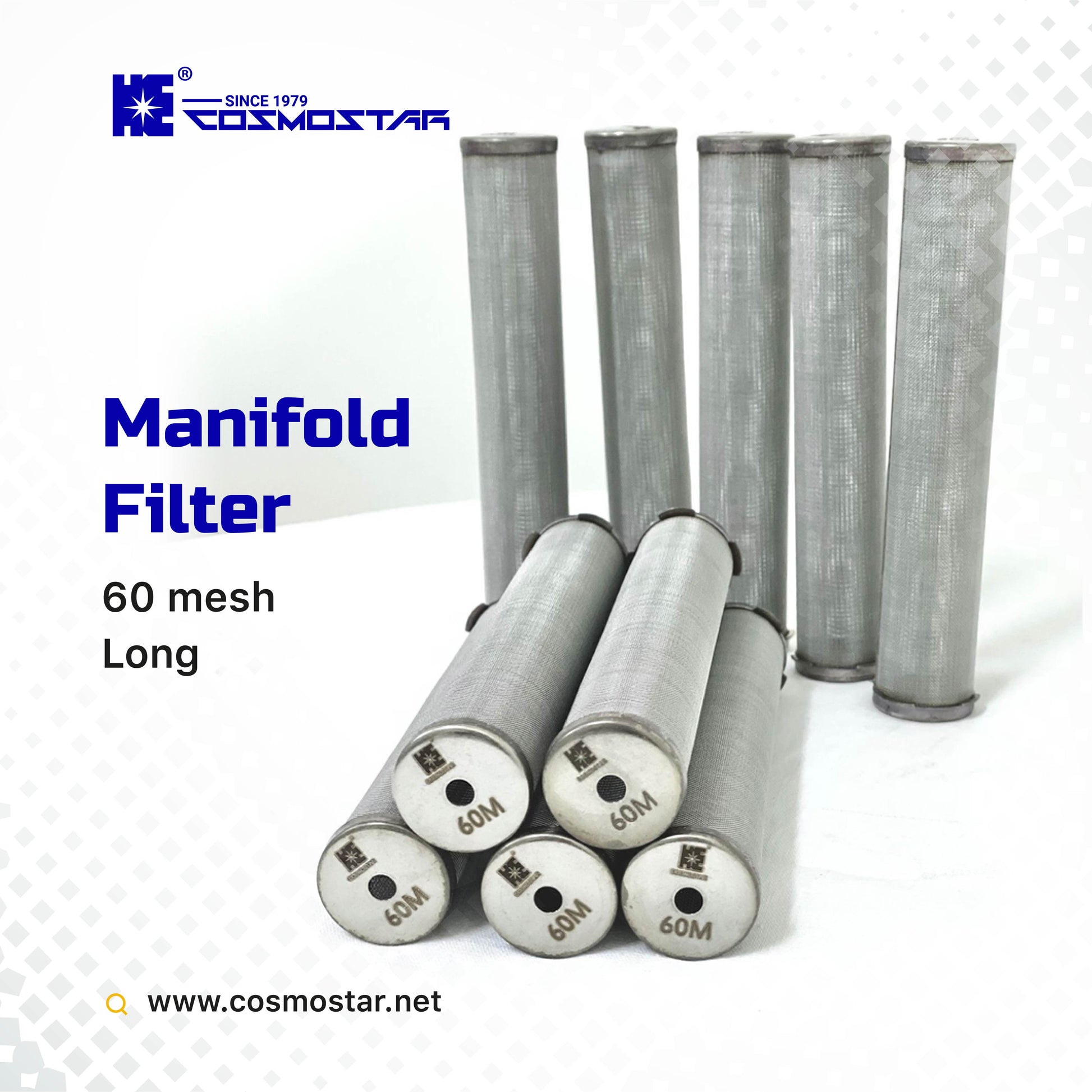

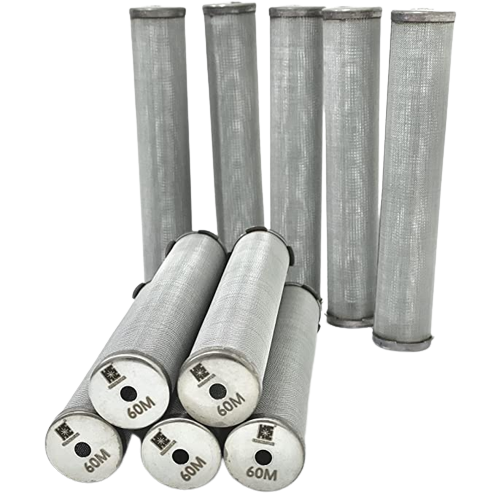

COSMOSTAR Airless Paint Sprayer Manifold Filter 60 Mesh
COSMOSTAR Airless Paint Sprayer Manifold Filter 60 Mesh
No reviews
Regular price
$60.00 USD
Regular price
$60.00 USD
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Airless sprayer parts / Fluid filtration
The last filter between your pump and your tip
A woven stainless screen on a rigid support core, sized to the long manifold housing used on full-size airless sprayers. Sold in packs of ten, because this is a consumable and a blocked screen stops the whole crew.
- Mesh
- 60nominal 250 µm
- Length
- 145millimetres / 5.71 in
- Diameter
- 27millimetres / 1.06 in
- Material
- SSstainless screen & core
- Pack
- 10pieces per order
- Cross-ref
- 224459and equivalents
Choosing a grade
What 60 mesh actually stops
Mesh number counts openings per inch — the higher the number, the finer the screen. Pick by the coating you spray, not by the sprayer you own. All three panels below show the same 3 mm of screen, drawn to scale.
30 MESHCoarse
Nominal aperture 590 µm
Heavy-bodied primers, block filler and thick latex. Passes larger particles, so step up for topcoats.

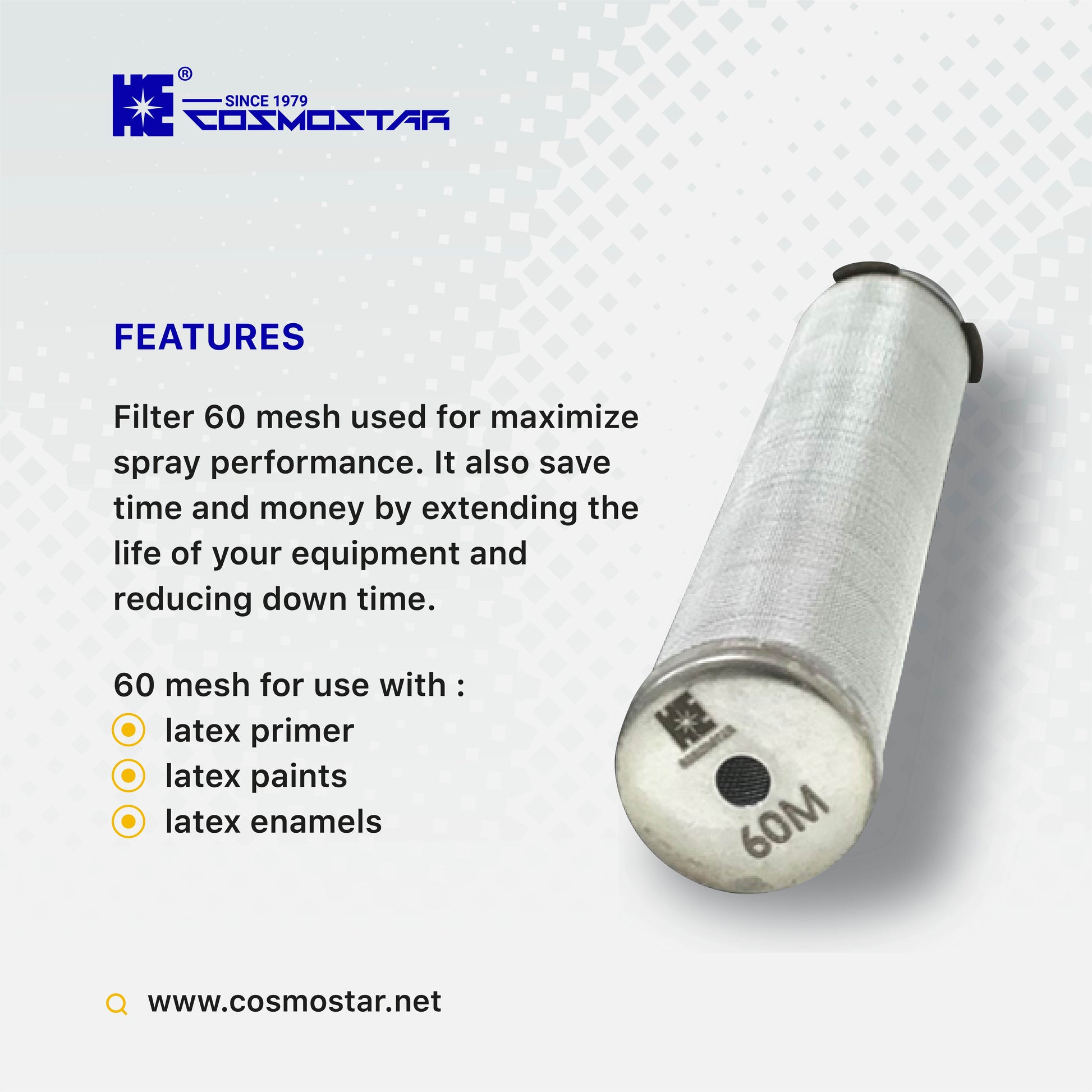

60 MESHThis item
Nominal aperture 250 µm
Latex, acrylic and most water-based coatings. Fine enough to keep tails and spitting out of the finish, open enough that it will not starve the pump.
100 MESHFine
Nominal aperture 150 µm
Lacquer, stain and fine finish work. Loads up faster and restricts flow on thick material.
3 mm field of view · same scale across all three
Data
Specifications
| Filter type | Manifold (fluid section) filter element, long body |
|---|---|
| Mesh grade | 60 mesh · nominal 250 µm aperture |
| Overall length | 145 mm (5.71 in) approx. |
| Outside diameter | 27 mm (1.06 in) approx. |
| Screen material | Woven stainless steel |
| Construction | Screen over a rigid perforated support core; holds shape under working pressure |
| Compatible media | Latex, acrylic, water-based and most solvent-based coatings |
| Pack quantity | 10 pieces |
| Other grades | 30 and 100 mesh in the same body size — available on request |
Fitment
Check these three before ordering
If body length, outside diameter and mesh grade all agree with the element you are replacing, this one drops straight in.
| Check | This element | How to confirm |
|---|---|---|
| Body length | 145 mm / 5.71 in | Measure the old element end to end. Short-body housings take a different part. |
| Outside diameter | 27 mm / 1.06 in | Measure across the end cap, not across the screen. |
| Mesh grade | 60 | Usually stamped or printed on the end cap of the original. |
| Reference number | 224459 | Interchanges with this and equivalent long 60-mesh manifold elements. Reference only — no affiliation with any sprayer manufacturer is claimed. |
Cheaper than packings
Particles that get past the manifold go on to score packings, ball seats and tip carbide. Filtering at this point is the least expensive maintenance on the whole rig.
A consumable, not a fitting
On heavy work a screen can load up in a day, and a blocked one stops the crew, not just the gun. Ten in the pack means the spare is in the van rather than at the paint store.
10pieces per pack
Why we do not sell these as singles
Manifold filters are consumables. Buying ten at a time costs less per piece than picking up singles, and it puts the spare where you need it — in the van, not at the counter. Distributor and OEM pricing available on volume.
